Introduction
In real-time business scenarios, standard IDOC structures often fall short when you need to send additional data to external systems. This is especially true for outbound deliveries where custom fields play a key role in integrations like WMS, 3PL, or third-party logistics platforms.
In this guide, we’ll walk through how to extend delivery IDOCs and send custom fields using enhancements in SAP.
Business Scenario
A business needs to send outbound delivery data along with custom fields to an external system for accurate logistics processing and tracking.
Solution Overview
To achieve this, we enhance the standard delivery IDOC by:
Creating custom segments
Extending the IDOC structure
Populating custom fields using user exits
Sending the enhanced IDOC to the target system
Step 1: Maintain Partner Profile (WE20)
Start by configuring the partner profile for outbound delivery IDOC processing.
Go to WE20
Select or create the partner

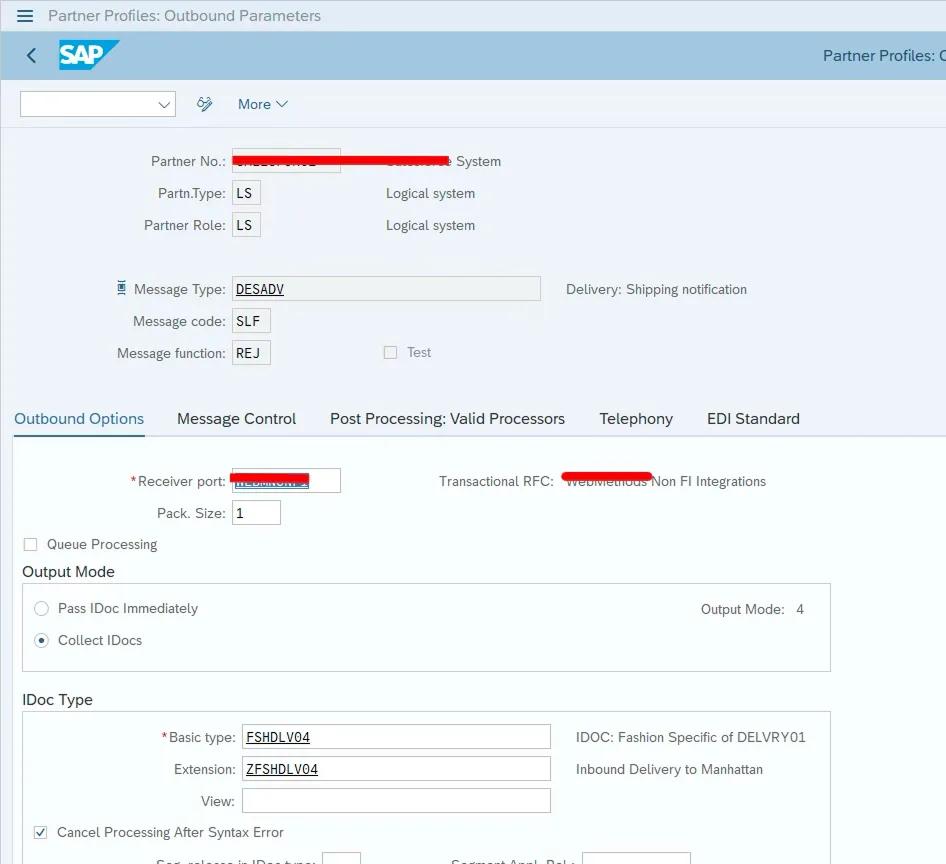

Maintain outbound parameters

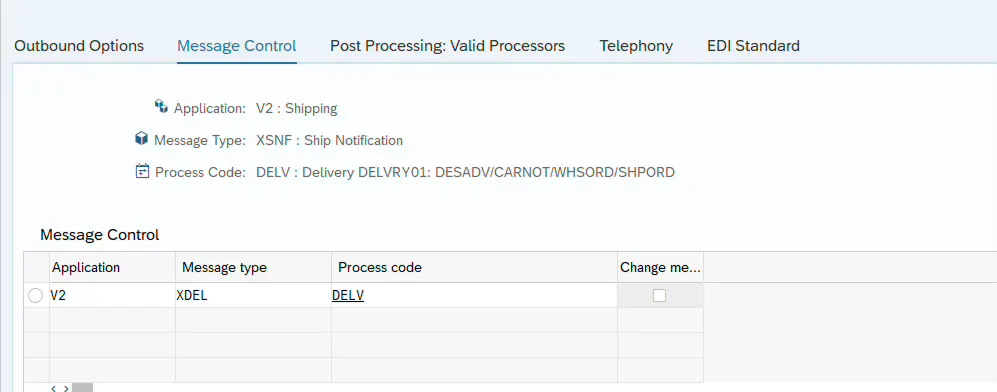

Assign message type and process code
This step ensures the IDOC is triggered correctly during delivery output.
Step 2: Create IDOC Extension (WE30 / WE31)
To include custom fields, you need to create a custom segment and extend the IDOC.

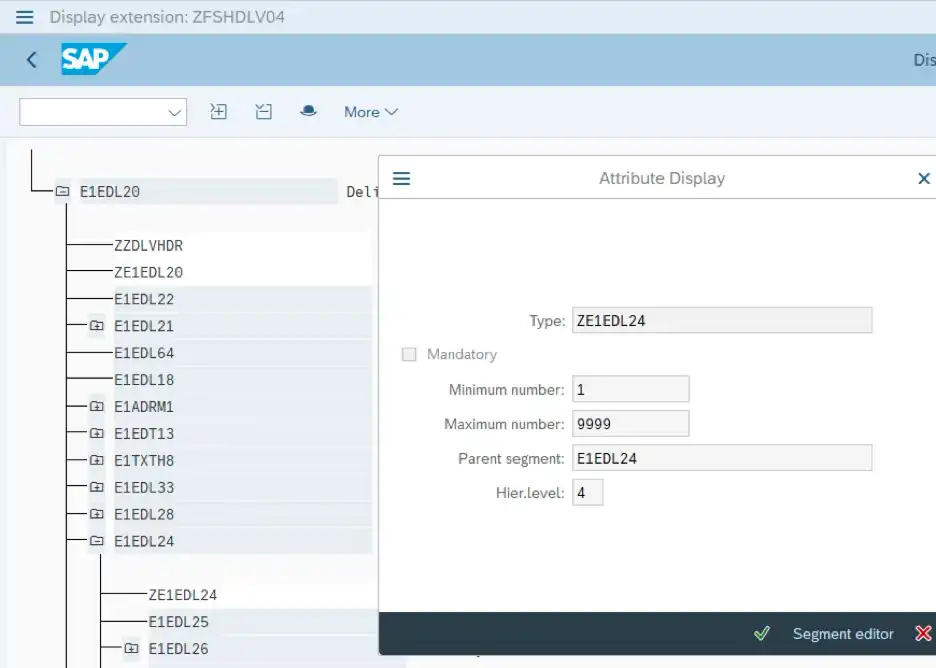

Use WE31 to create a segment with required fields
Use WE30 to create an extension
Attach the custom segment to the relevant parent segment
đź’ˇ If you’re not familiar with segment/field creation, you can refer to your article on receiving sales orders with IDOCs for a similar structure approach.
Step 3: Identify Enhancement (User Exit)
To populate custom fields, use the standard function module:
IDOC FM:
IDOC_OUTPUT_DELVRYUser Exit:
EXIT_SAPLV56K_002Include:
ZXTRKU02
This is where the custom logic will be written.
Step 4: Implement Logic to Populate Custom Fields
Inside the user exit, identify the segment and populate your custom data.
You will typically handle segments like:
E1EDL20(Header)E1EDL24(Item)

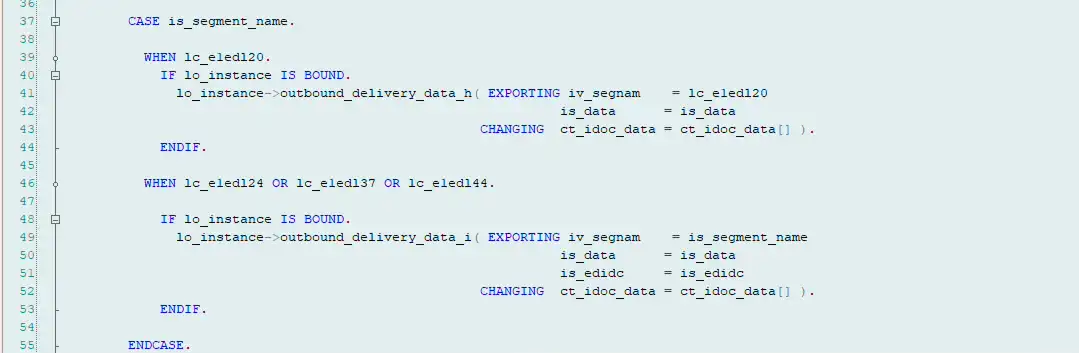

CASE is_segment_name.
WHEN lc_e1edl20.
IF lo_instance IS BOUND.
lo_instance->outbound_delivery_data_h(
EXPORTING
iv_segnam = lc_e1edl20
is_data = is_data
CHANGING
ct_idoc_data = ct_idoc_data[] ).
ENDIF.
WHEN lc_e1edl24.
ls_idoc_data = ct_idoc_data[ lv_count ].
ls_e1edl24 = ls_idoc_data-sdata.
SELECT SINGLE menge meins
FROM zptp_t_mat_alias
INTO (@lv_menge, @lv_meins)
WHERE matnr = @ls_e1edl24-matnr.
IF sy-subrc = 0 AND ls_e1edl24-lfimg NE 0.
ls_e1edl24-lfimg = ls_e1edl24-lfimg * lv_menge.
ls_e1edl24-lgmng = ls_e1edl24-lgmng * lv_menge.
ls_e1edl24-vrkme = lv_meins.
ls_e1edl24-meins = lv_meins.
ENDIF.
ls_idoc_data-sdata = ls_e1edl24.
MODIFY ct_idoc_data FROM ls_idoc_data INDEX lv_count.
ENDCASE.
Step 5: Activate and Test the IDOC
Once development is complete:
Activate all objects
Trigger delivery output (VL02N / VL03N)

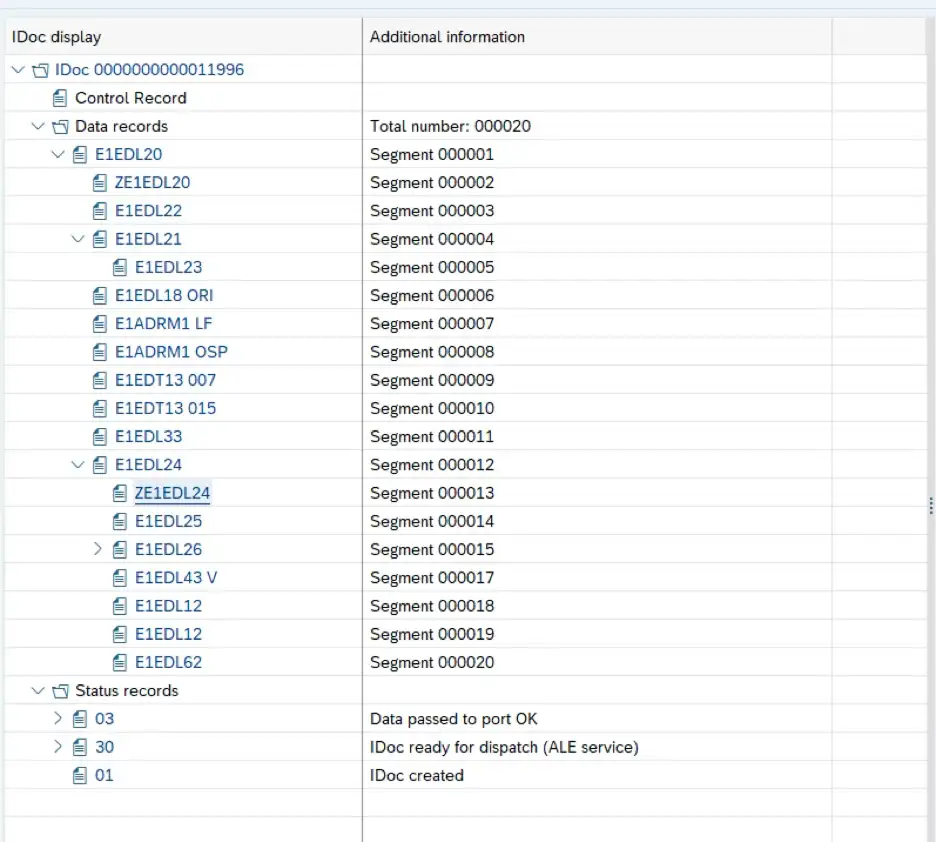

Monitor IDOC in WE02 / WE05
Verify that your custom segment and fields are populated correctly.
Step 6: Validate Output
Check:
Custom segment appears in IDOC
Field values are correctly populated
Data is received in target system
Common Mistakes Developers Make
Forgetting to assign the extension to message type
Incorrect segment hierarchy
Not activating the enhancement
Data not mapped properly inside the exit
- Missing partner profile configuration
Frequently Asked Questions
1. Can we add multiple custom segments in delivery IDOC?
Yes, multiple custom segments can be added based on business requirements.
2. Which user exit is used for delivery IDOC enhancement?
EXIT_SAPLV56K_002 is commonly used to populate custom fields.
3. How to check if custom fields are populated?
You can verify it in WE02 or WE05 by inspecting the generated IDOC.
🎉 Final Thoughts
Enhancing delivery IDOCs is a powerful way to meet real-world integration needs. With the right approach, you can extend standard SAP functionality without modifying core logic.
Once you understand the pattern—segment creation, enhancement, and data population—you can reuse the same concept across multiple IDOC scenarios.
If you are working with outbound processes, you might also find Send Sales Orders Confirmation with IDOC Extension useful for comparison.
